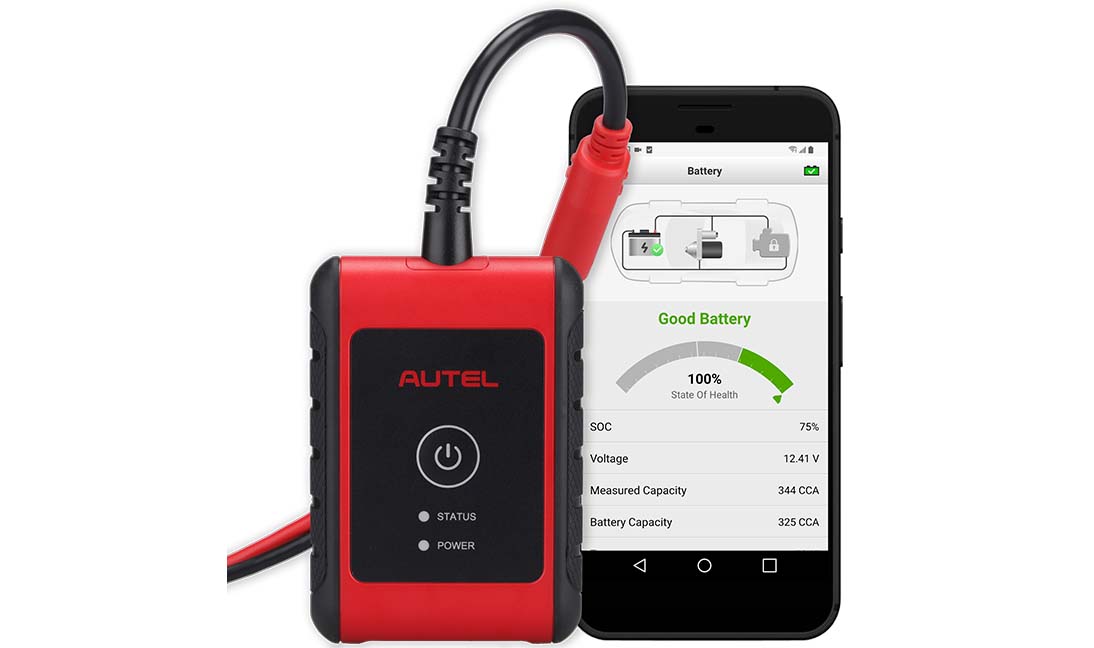

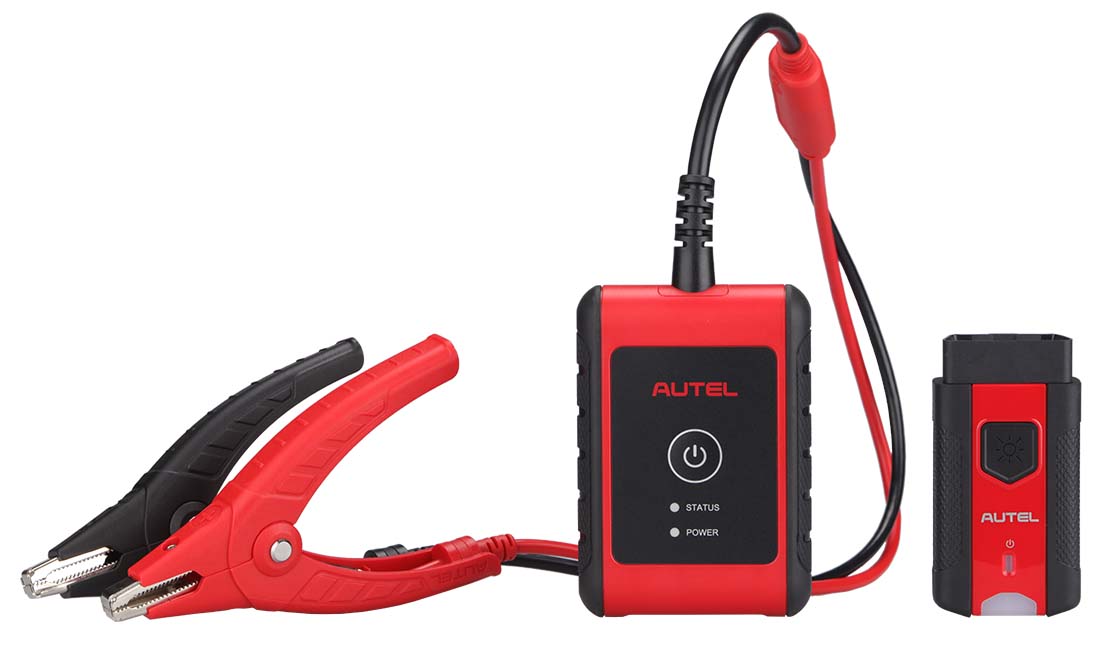

MaxiBAS BT508

The BT508 is powerful yet, lightweight battery and electrical system tester that uses Adaptive Conductance, an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT508 to perform testing and display test results. The BT508 package includes a wireless Bluetooth vehicle communication interface enabling battery and electrical component registration.


  • image 0

    Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries



    Test 6- and 12-volt batteries: 100 - 2000 CCA



    Test 12- and 24- cranking/charging systems



    Test Flooded, AGM, AGM Spiral, EFB and GEL batteries



    Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA



    One-touch battery registration



    Illustration instruction guides for battery positioning and testing



    Read and erase codes of all available systems



ItemDescription
ConnectivityUSB 2.0, Type C
Bluetooth   V3.0 BR/EDR+ V4.2 LE Dual-Mode
Input Voltage5 V DC
Working Current< 150 mA at   12 V DC
CCA Range100 to 2000 A
Voltage Range6 to 36 V
Working Temperature-10° to 50° C   (14° to 122° F)
Storage Temperature-20° to 60° C   (-4° to 140° F)
Dimension (L x W x H)107 mm (4.21“)   x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
Weight320 g (0.7 lb.)


  • Description
  •     Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries



        Test 6- and 12-volt batteries: 100 - 2000 CCA



        Test 12- and 24- cranking/charging systems



        Test Flooded, AGM, AGM Spiral, EFB and GEL batteries



        Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA



        One-touch battery registration



        Illustration instruction guides for battery positioning and testing



        Read and erase codes of all available systems


  • Specifications

  • ItemDescription
    ConnectivityUSB 2.0, Type C
    Bluetooth   V3.0 BR/EDR+ V4.2 LE Dual-Mode
    Input Voltage5 V DC
    Working Current< 150 mA at   12 V DC
    CCA Range100 to 2000 A
    Voltage Range6 to 36 V
    Working Temperature-10° to 50° C   (14° to 122° F)
    Storage Temperature-20° to 60° C   (-4° to 140° F)
    Dimension (L x W x H)107 mm (4.21“)   x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
    Weight320 g (0.7 lb.)
