900 Series Tablets
INTELLIGENT DIAGNOSTICS

The Autel MaxiSYS Ultra Series delivers leading-edge automotive diagnostics, repair, and calibration technologies packaged in a heavy-duty, shop-ready Android tablet. With split-screen display for monitoring multiple functions at once, Repair Assist guided procedures to help you along every step of the way, and the backing of our best-in-class Autel support team, these tools have the power to simplify your job and save you time and money, year over year.


DTC, Vehicle Specific Repair Guided Assistance
Multiple Repair Guidance Options
Technical Service Bulletin Listings
DTC Analysis - Conditions & Criteria That Cause A Code To Set

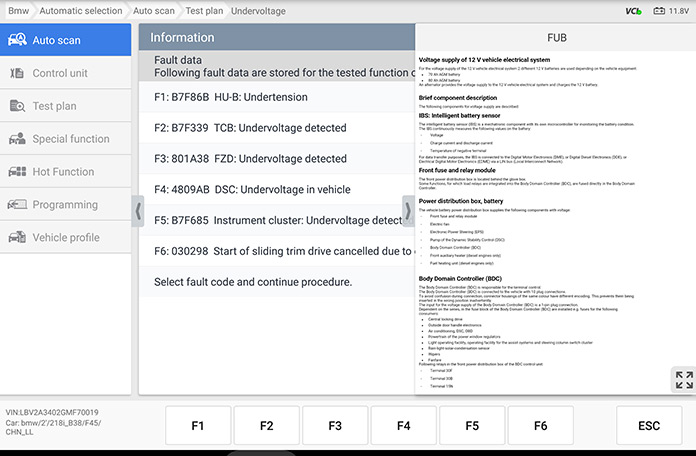

Repair Assist - Step By Step Procedures & Tests
Relevant Cases - Related TSBs & Similar Repairs
VCMI Component Measurements - Guided Scan To Scope Testing
D-PDU / J2534 / RP1210 Diagnostic Protocols Cover More Vehicle Types
DoIP / CAN FD Protocols for High-Speed CAN Cover New Vehicle Models

Motor Driven
Autel Has Partnered with MOTOR

Integrated Repair Data now available through your Autel Ultra series tablet! Go to the MaxiDATA app on your MaxiSYS tablet, click the Autel Cloud icon, and claim your free trial*

• Repair Procedures
• Wiring Diagrams
• Diagnostic Trouble Codes
• Specifications
• Component Locations
• Maintenance Schedules
• Factory Technical Service Bulletins & Recalls

FULL DETAILS

MSUltra
ULTRA Tablet
ADVANCED ANALYSIS DIAGNOSTIC SYSTEM
Split Screen Display
MaxiFLASH VCMI 5-in-1 Device
Topology Module Mapping

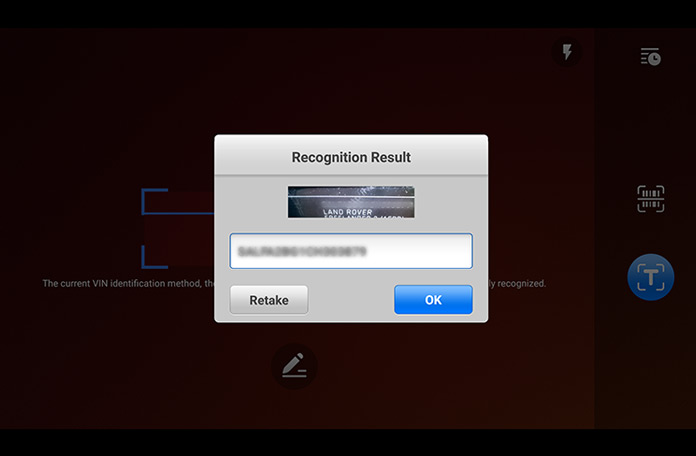

ScanVIN / Auto-VIN / Auto-Scan
Repair Assist Guided Procedures
26 Service Features / Bi-Directional

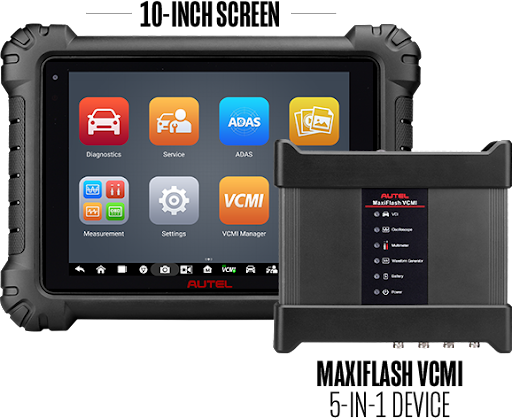

MS919
MS919 Tablet
MS909
MS909 Tablet

POWERFUL & COMPLETE DIAGNOSTIC SYSTEMS
Topology Module Mapping
ScanVIN / Auto-VIN / Auto-Scan
Relevant Cases / DTC Analysis
Repair Assist Guided Procedures
26 Service Features / Bi-Directional

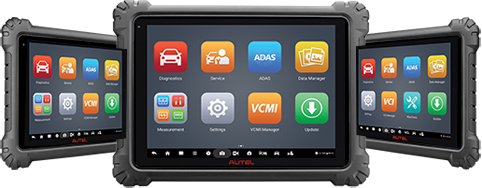

Compare The Ultra Series

  MS909 MS919 MSULTRA
Vehicle Connection MaxiFlash VCI
INCLUDING LATEST PROTOCOLS
MaxiFlash VCMI
INCLUDING LATEST PROTOCOLS
MaxiFlash VCMI
INCLUDING LATEST PROTOCOLS
Color Screen 9-7-Inch Touchscreen
1536 X 2048 DPI / TFT-LCD ASAHI GLASS
9-7-Inch Touchscreen
1536 X 2048 DPI / TFT-LCD ASAHI GLASS
12-9-Inch Touchscreen
2732 x 2048 DPI / TFT-LCD CORELLE GLASS
Processor 2.3GHz + 1.7GHz
OCTA-CORE
2.3GHz + 1.7GHz
OCTA-CORE
2.3GHz + 1.7GHz
OCTA-CORE
Memory / RAM 128GB SSD / 4GB RAM 128GB SSD / 4GB RAM 256GB SSD / 4GB RAM
Battery 15,000 mAh 15,000 mAh 18,000 mAh
Camera 16MP Rear / 5MP Front 16MP Rear / 5MP Front 16MP Rear / 5MP Front
Docking Station Included

  MS909 MS919 MSULTRA
Operating System ANDROID 7.0 ANDROID 7.0 ANDROID 7.0
Software Updates 1 Year FREE 1 Year FREE 1 Year FREE
Automatic Detection SCANVIN / AUTO-VIN /AUTO-SCAN SCANVIN / AUTO-VIN /AUTO-SCAN SCANVIN / AUTO-VIN /AUTO-SCAN
Split Screen Display VIEW MULTIPLE FUNCTIONS AT ONCE
Advanced VCMI
5-IN-1 Device
VCI, OSCILLOSCOPE, MULTIMETER, WAVEFORM GENERATOR, CAN BUS CHECK VCI, OSCILLOSCOPE, MULTIMETER, WAVEFORM GENERATOR, CAN BUS CHECK
Repair Assist GUIDED PROCEDURES WITH DTC ANALYSIS & FAULT CODE SOLUTIONS GUIDED PROCEDURES WITH DTC ANALYSIS & FAULT CODE SOLUTIONS GUIDED PROCEDURES WITH DTC ANALYSIS & FAULT CODE SOLUTIONS
Topology Module Mapping COLOR CODED ALL SYSTEM STATUS SCREEN
ON SUPPORTED VEHICLES
COLOR CODED ALL SYSTEM STATUS SCREEN
ON SUPPORTED VEHICLES
COLOR CODED ALL SYSTEM STATUS SCREEN
ON SUPPORTED VEHICLES
Relevant Cases DTC TROUBLESHOOTING DTC TROUBLESHOOTING DTC TROUBLESHOOTING
Technical Service Bulletins AVAILABLE ON SELECT VEHICLES AVAILABLE ON SELECT VEHICLES AVAILABLE ON SELECT VEHICLES

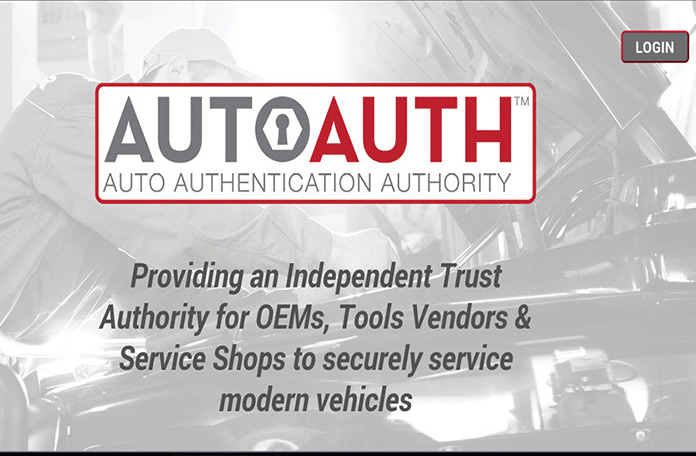

Secure Gateway Access AUTHORIZED FCA ACCESS
WITH AUTOAUTH ACCOUNT
AUTHORIZED FCA ACCESS
WITH AUTOAUTH ACCOUNT
AUTHORIZED FCA ACCESS
WITH AUTOAUTH ACCOUNT
License Plate Reader AVAILABLE ON SUPPORTED VEHICLES AVAILABLE ON SUPPORTED VEHICLES AVAILABLE ON SUPPORTED VEHICLES

  MS909 MS919 MSULTRA
Vehicle Diagnostics PASSENGER / LIGHT DUTY
SOME MEDIUM DUTY
PASSENGER / LIGHT DUTY
SOME MEDIUM DUTY
PASSENGER / LIGHT DUTY
SOME MEDIUM DUTY
Basic & Special Functions DOMESTIC, ASIAN & EUROPEAN
1996 AND NEWER
DOMESTIC, ASIAN & EUROPEAN
1996 AND NEWER
DOMESTIC, ASIAN & EUROPEAN
1996 AND NEWER
OBDII Test Modes ALL 10 TEST MODES
LIVE & FREEZE FRAME / ENHANCED MODE 6
ALL 10 TEST MODES
LIVE & FREEZE FRAME / ENHANCED MODE 6
ALL 10 TEST MODES
LIVE & FREEZE FRAME / ENHANCED MODE 6
Service Resets 26 SERVICE FEATURES 26 SERVICE FEATURES 26 SERVICE FEATURES
Diesel PM RESET DIESEL EMISSIONS
LIGHT & MEDIUM DUTY VEHICLES
RESET DIESEL EMISSIONS
LIGHT & MEDIUM DUTY VEHICLES
RESET DIESEL EMISSIONS
LIGHT & MEDIUM DUTY VEHICLES
System Diagnostics ACCESS ALL MODULES
IN ALL SYSTEMS
ACCESS ALL MODULES
IN ALL SYSTEMS
ACCESS ALL MODULES
IN ALL SYSTEMS
Component Activations BI-DIRECTIONAL CONTROL BI-DIRECTIONAL CONTROL BI-DIRECTIONAL CONTROL
Enhanced Functions ADVANCED CODING + ADAPTATIONS ADVANCED CODING + ADAPTATIONS ADVANCED CODING + ADAPTATIONS

maxiSYS Logo  Video Library


MAXIFLASH VCMI  5-IN-1 DEVICE
Touch Icons
maxiFLASH VCMI
NEW COMBINATION VEHICLE COMMUNICATION AND MEASUREMENT INTERFACE
D-PDU / J2534 / RP1210 Diagnostic Protocols Cover More Vehicle Types
DoIP / CAN FD Protocols for High-Speed CAN Cover New Vehicle Models
NEW Oscilloscope - Faster Bandwidth 20MHz / Sample Rate 80MS/s
Higher 12-Bit Resolution / Larger Memory 32Mil Samples
EASIER OPERATION OF BUILT-IN PRESET GUIDED TESTS FOR FASTER OPERATION
Custom Probe Specification & Reference Waveform Libraries
Saved Test Configurations / Component Tests / Data Graphs
AFFORDABLE TEST COMPONENT COMBINATION FOR REPAIR CONFIRMATION
Combined Signal Detection and Signal Stimulation
OBDII Channel Detection / DLC Pin Location and Direct Measurement
Protocol CAN Testing / Advanced Triggering / Auto-Scale Zooming

4 Channels

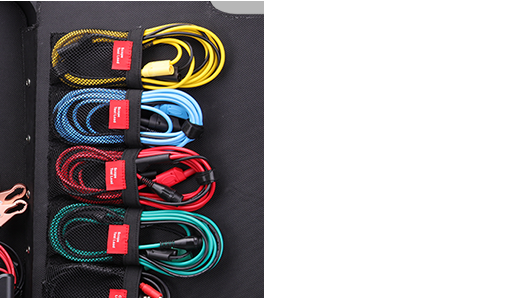

Oscilloscope Cables
