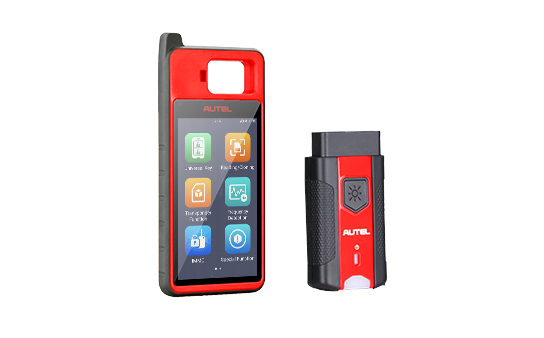

MaxiIM KM100/KM100E/KM100X

MaxiIM KM100/KM100E/KM100X is an advanced key and immobilizer touchscreen tablet capable of smart key creation and IMMO learning via OBD. This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel IKEY as a smart key replacement for more than 700 vehicles and offers IMMO programming capability for multiple vehicle brands including BMW, Volkswagen, Toyota, Honda, and General Motors. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.


  • image 0
  • image 0
  • image 0

• Programs Autel’s IKEY universal key as smart key replacement for more than 700 vehicles


• Extensive IMMO Key programming coverage including BMW, Volkswagen, Toyota, Honda, and General Motors


• One-Minute Key Generation


• Chip Read & Write, Cloning and Frequency Detection


• AutoVin vehicle identification to ensure accuracy


• Simple User Interface with Concise Instructions


• Powerful Android-based tablet with 64 GB memory and long-lasting rechargeable battery

Dimensions   (WxHxD)

200mm(7.9”) x 89 mm (3.5”)   x 22 mm (0.87”)

Weight

352.7g (0.8 lb)

Screen

5.5-inch screen with 1280 x 720 resolution

Processor

Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)

Operating System

Android™   9.0

Memory

2GB RAM/64GB on-board memory

Camera

8 megapixels

Connection

Wi-Fi

Bluetooth 5.0

USB 2.0 type C

Battery

4950mAh lithium-polymer battery

VCI

V200

Input

5V/2A

Sensor

Ambient light sensor

Audio Input/Output

MIC: supported

Speaker: supported

Operating Temp

-10 to 45°C (14 to 113°F)

Storage Temp

-20 to 60°C (-4 to 140°F)


  • Autel MaxiIM KM100


  • KM 100 - Simulation


  • KM100 - Introduction and Unboxing


  • KM100 - Key Adjustment


  • KM100 - Immobilizer Data Processing


  • KM100 - 46 Password Calculation


  • KM100 - IMMO Pairing


  • KM100 - Universal Key Generation


  • Description
  • • Programs Autel’s IKEY universal key as smart key replacement for more than 700 vehicles


    • Extensive IMMO Key programming coverage including BMW, Volkswagen, Toyota, Honda, and General Motors


    • One-Minute Key Generation


    • Chip Read & Write, Cloning and Frequency Detection


    • AutoVin vehicle identification to ensure accuracy


    • Simple User Interface with Concise Instructions


    • Powerful Android-based tablet with 64 GB memory and long-lasting rechargeable battery

  • Specifications
  • Dimensions   (WxHxD)

    200mm(7.9”) x 89 mm (3.5”)   x 22 mm (0.87”)

    Weight

    352.7g (0.8 lb)

    Screen

    5.5-inch screen with 1280 x 720 resolution

    Processor

    Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)

    Operating System

    Android™   9.0

    Memory

    2GB RAM/64GB on-board memory

    Camera

    8 megapixels

    Connection

    Wi-Fi

    Bluetooth 5.0

    USB 2.0 type C

    Battery

    4950mAh lithium-polymer battery

    VCI

    V200

    Input

    5V/2A

    Sensor

    Ambient light sensor

    Audio Input/Output

    MIC: supported

    Speaker: supported

    Operating Temp

    -10 to 45°C (14 to 113°F)

    Storage Temp

    -20 to 60°C (-4 to 140°F)
