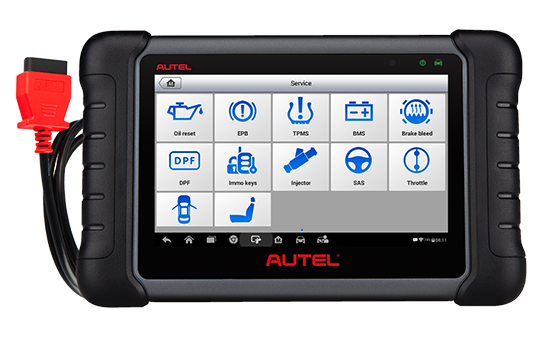

MaxiCheck MX808

OBD2 All System Diagnostic Scanner

When it comes to ultra-portability, MaxiCheck MX808 is your perfect companion. Installed with a fast quad-core processor, MX808 offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless through a 7-inch LCD touch screen that displays at 1024x600 quality.


  • image 0
  • image 0

• Read/clear codes for all available systems


• Display live data in text, graph & analog for easy data review


• Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time


• NEW! Support active test and complete special functions


• Reset Steering Angle Sensor (SAS)


• Reset service mileage and service intervals


• Relearn parking brake pad after replacement


• Support forced DPF regeneration and adjusting injectors


• Support battery registration and reset


• NEW! Compatible with Videoscope

Recommended UseIndoor
Operating SystemAndroid™ 4.4.4, KitKat
ProcessorCortex-A9 processor(1.6 GHz)
Memory64GB
Display7-inch LCD capacitive touchscreen with 1024x600 resolution
ConnectivityMini USB 2.0
USB2.0
Wi-Fi
HDMI Type A
Micro SD card slot(supports up to 32GB)
SensorsLight sensor for brightness auto adjust
Audio input/output

Input: N/A

Output: buzzer

Power and Battery3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
Tested Battery LifeAround 7 hours of continuous use
Battery Charging Input5V/1.5A
Power Consumption600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V
Operating Temp-10to60°C(14to140°F)
Storage Temp-20to70°C(-4to158°F)
Operating Humidity5%-95%non-condensing
Dimensions(WXHXD)270.8mm(10.0)X176.0mm(6.9)x36.0mm(1.4)
Net Weight885g(2.31|b.)
ProtocolsISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,
SAE-J1850 VPW,SAE-J1850PWM,
ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN)
SAE J2610,GM UART UART Echo Byte Protocol
Honda Diag-H Protocol,TP2.0,TP1.6

MaxiDAS DS808

MaxiDAS DS808TS

MX808

MX808TS

Read Codes

Erase Codes

Live Data

ECU Information

Active Test

Service Functions

Complete OBD Diagnostics

Oil Service Reset

Parking Brake Pad Relearn After Replacement

Steering Angle Sensor Relearn

Battery Registration and Reset

Diesel Particulate Filter Regeneration

Tire Pressure Monitoring System

Basic

Complete

Basic

Complete

Immobilizer Function

Basic

Basic

Basic

Basic

Advanced TPMS Diagnostics for Complete TPMS Health Check

--

--

Activate 98% of All Known TPMS Sensors

--

--

Program AUTEL MX-Sensors

--

--

Comprehensive OBD relearn coverage

--

--

On-screen Relearn Procedure

--

--

Battery Analysis

--

--

Videoscope

Processor

Quad-core 1.6GHz

Quad-core 1.6GHz

Quad-core 1.6GHz

Quad-core 1.6GHz

OS

Android 4.4.4

Android 4.4.4

Android 4.4.4

Android 4.4.4

Memory

1G + 64G

1G + 64G

1G + 64G

1G + 64G

Display

7" LCD

7" LCD

7" LCD

7" LCD

Battery

5000 mAh

5000 mAh

5000 mAh

5000 mAh

Internet Updatable

WiFi

WiFi

WiFi

WiFi

Multilingual Support

Historical Test Records

Save and Playback Data

Print Data via Windows PC or WIFI printer

Vehicle communication method

Wired

Wireless (bluetooth)

Wired

Wireless (bluetooth)
