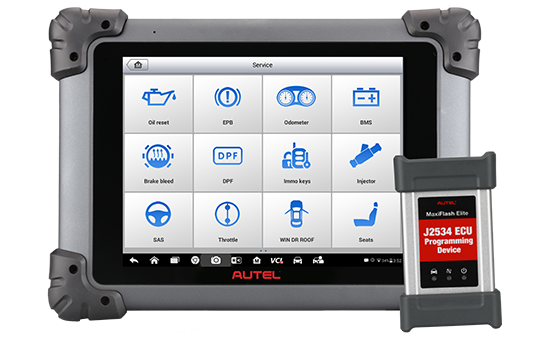

MaxiSYS MS908S Pro

OBD2 Bi-Directional Diagnostic Scanner And J2534 VCI

One of the MaxiSys series devices, the MS908S Pro Diagnostic Platform bases on the revolutionary Android multitasking operating system, utilizes the powerful Cortex A7+A15 six-core processor, and equips with 9.7-inch LED capacitive touch screen. Supporting J2534 ECU Programming Device is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues. MS908S Pro is an ideal tool for a truly trouble-free diagnosis of a maintenance plant by quickly, efficiently and effectively diagnosing automotive faults, managing customer data, and standardizing business processes.


  • image 1
  • image 1

• Extraordinarily powerful Cortex A7+A15 six-core processor


• 9.7” 2048x1536 LED-backlit glossy Multi-Touch capacitive display with IPS technology


• Internal reliable 64GB On-board Memory for better performance


• Built-in 8-megapixel rear camera with autofocus and flashlight


• The VCI connects to the main unit wirelessly with up to 70 meters working range


• 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources


• Unique ergonomic design with rubberized outer protection and a rugged internal housing


• Open source Android Operating System for fast boot-up and multitasking


• Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes


• Exceptional OE-Level system coverage for all electronic systems


• Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc


• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes


• Built-in rechargeable lithium-polymer battery for up to 7.5 hours of continuous operation


• Equip with J2534 ECU Programming Device for replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues

Operating SystemAndroid™ 4.4.2, KitKat
ProcessorSamsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory2GB RAM & 64GB On-board Memory
Display9.7 inch LED capacitive touch screen with 2048x1536 resolution
ConnectivityWi-Fi (802.11 a/b/g/n/ac)
USB: 2.0
BT v.2.1 + EDR
SD Card (Support up to 32GB)
HDMI
Camera (rear)8.0 Megapixel, AF with Flashlight
SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/OutputMicrophone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery11000 mAh 3.7 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage12 V (9-24 V)
Power Consumption6.5 W
Operating Temp0 to 50°C (32 to 122°F)
Storage Temp-20 to 60°C (-4 to 140°F)
Dimensions(WXHX D)300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
WeightNW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.)
ProtocolsISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN,
GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,
SAE J1708, Fault-Tolerant CAN
  • Autel MaxiSys MS908S Diagnostic Intelligence



MaxiSys

Elite

MaxiSys

CV

MaxiSys

MS908S Pro

MaxiSys

MS908S

MaxiSys

MS906TS

MaxiSys

MS906BT

MaxiSys

MS906





MaxiSys

Elite

MaxiSys

CV

MaxiSys

MS908S Pro

MaxiSys

MS908S

MaxiSys

MS906TS

MaxiSys

MS906BT

MaxiSys

MS906

Function






All Systems DTC Scan
Service Function
Bi-Directional Control
Auto VIN Technology
ECU Coding----
ECU Programming----------

MaxiFix Cloud-Based Info System

Data Manager
Shop Manager
Remote Support
Pre-scan Report & Post-scan ReportNorth America Only--North America OnlyNorth America OnlyNorth America OnlyNorth America Only
Print Feature
Multi-language Support
Coverage






Domestic/Asian/European Coverage(1996-Present)
Hardware






Display Size9.7"9.7"9.7"9.7"8"8"8"
Wireless VCIMaxiFlash EliteMaxiFlash EliteMaxiFlash EliteWireless Diagnostic
Interface
MaxiVCI V100MaxiVCI V100--
Battery Life15400 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V10000 mAh 3.7 V10000 mAh 3.7 V5000 mAh 3.7 V
Memory Storage64GB64GB64GB64GB32GB32GB32GB
Connector Kit
Options






TPMS------------
Oscilloscope--
Inspection Camera--
ADAS----
