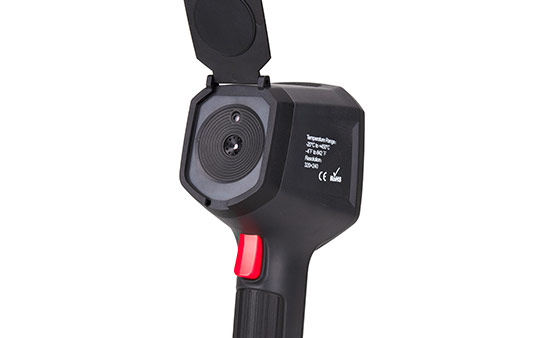

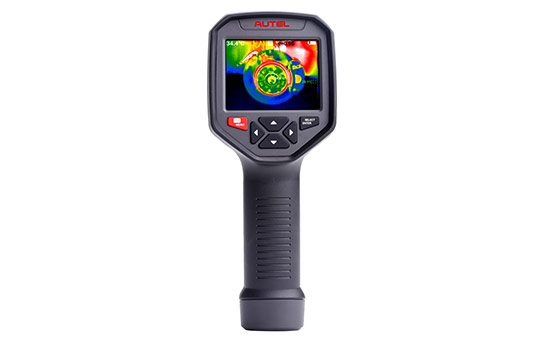

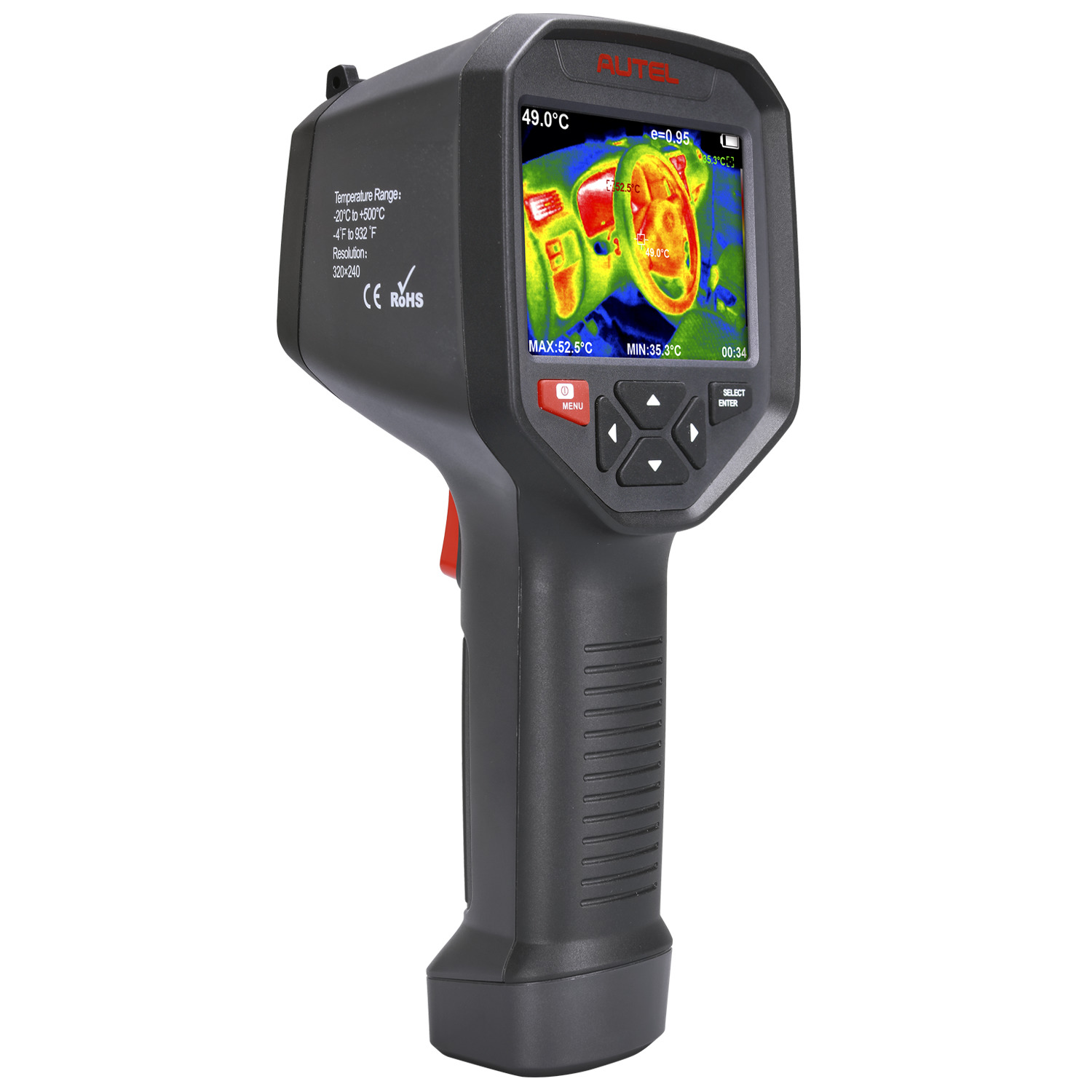

MaxiIRT IR100

The MaxiIRT IR100 Thermal Imaging Camera measures from -20° C to 450° C (-4° F to 842° F), making heat fluctuation, loss, or buildup visible to the human eye. The dual camera overlay feature allows you to view thermal images over standard images, creating easily identifiable images. The IR100 combines high resolution, auto-focus, a 0.98 second refresh rate, and Wi-Fi image transfer to your PC or mobile device, including your MaxiSYS tablet, for a swift and accurate diagnosis. Adjustable emissivity settings and a choice of five color pallets helps customize the user experience. Troubleshoot brakes, exhaust, heated seats, HVAC and more in seconds. The IR100 includes a 1-Year Warranty.


  • image 0
  • image 0
  • image 0
  • image 0

MaxiIRT IR100 Thermal Imaging Camera


• Auto-Focus for Instant Thermal Imaging


320x240 Infrared Resolution for Clear Image


Measures from -20° C to 450° C (-4° F to 842° F)


Wi-Fi Image Transfer to PC or Mobile Device


Dual Camera Overlay Feature


• Adjustable Emissivity Settings (Supports from 0.01 to 1.00) For the Most Accurate Results


Choose from Five Color Palettes: Iron Red, Cool, White, Black, Rainbow (Spectra)


• 8GB Memory Card Storage Holds Up to 50,000 Pictures


5000mA Rechargeable Lithium-ion Battery for 4 Hours of Use Per Charge


0.98s Refresh Rate for Real-Time Accuracy


• Includes a 1-Year Warranty


Display screen3.5 inch full view TFT display
Infrared image resolution320×240
Visible image resolution300,000 pixel
LCD resolution640×480
Field angle56°×42°
Thermal sensitivity0.07°C
Frame rate of thermal images9Hz
Focus modeFixed
Wave length coverage8-14um
EmissivityAdjustable from 0.01 to 1.00
Color paletterainbow, iron oxide red, cold color, white hot, black hot
Temperature measurement range-20 °C to 450 °C
Storage capacityBuilt in 8G
File formatJPEG
USBMicro USB 2.0
Power supplyBuilt in chargeable 26650 battery Detachable
Working time3-4 hours
LanguageEnglish, Chinese , German, Italian
Automatic power
off time
Selectable: 5 minutes, 20 minutes, not power off automatically
Product size256mm×97.2mm×128.9mm
Product weight588g
Working temperature0
°C to 45 °C
Storage temperature-20 °C to 60 °C
