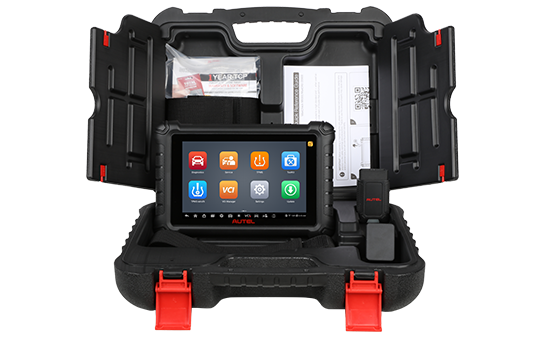

MaxiCheck MX900TS

AUTOMOTIVE DIAGNOSIS SYSTEM

The new MaxiCheck MX900-TS delivers complete diagnostic functions and comprehensive TPMS solutions for all the covered makes and models. This results in an extremely purposeful and creative tool. Easy and intuitive navigation on the 8-inch touchscreen allows you to fast find what you need. The MaxiVCI V150 for wireless communication with the test vehicle and its advanced wireless technologies make it truly portable and Internet accessible.

  • image 0
  • image 0

· Extensive vehicle coverage for U.S., Asian, and European vehicle makes

· Exceptional OE-Level system for all electronic systems

· Excellent functions for reading codes, live data, ECU information and performing active test, adapation, and matching, etc.

· Features DoIP and CAN FD protocols

· Smart AutoVIN technology for identifying vehicles easily

· Automatic system and software updates with real-time push notifications through the Internet

· Instant remote control tech support anytime and anywhere

· Advanced TPMS diagnostics with DTC description

· TPMS status, one step for complete TPMS health check

· Activate all known TPMS sensors

· Program AUTEL MX-Sensor

· Comprehensive OBD relearn coverage

· On-screen relearn procedure

· One-stop multitasking designed for ideal management of workshop operations to keep

all data files, customer info, and vehicle records well organized

· Supports Pre & Post Scan


Operating   SystemAndroid   11
ProcessorQuad core Processor(1.8GHz)
Memory4GB RAM & 64GB ROM
Display8-inch LCD capacitive touchscreen with 1280x800 resolution
Rear Camera8 MP
ConnectivityUSB Type-C
USB 2.0
Wi-Fi
Bluetooth
Mini SD card (supports up to 64GB)
Audio Input/OutputInput: N/A
Output: buzzer
Power and Battery3.7 V/7700mAh lithium-polymer battery
Charges via 5 VDC power supply
Battery Charging Input5 V/3 A
Operating Temp0 to 50°C (32 to 122°F)
Storage Temp-10 to 60°C (14 to 140°F)
ProtocolsISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing   Code, SAE-J1850 VPW, SAE-J1850PWM,   ISO11898(High-speed, Middle-speed, Low-speed    and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART   Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD



MaxiCheck MX900TSMaxiCheck MX900MaxiCheck MX808TSMaxiCheck MX808
Read Codes
Erase Codes
Live Data
ECU Information
Active Test
Service Functions√(40kinds)√(40kinds)√(36kinds)√(36kinds)
Complete OBD Diagnositcs
Pre & Post Scan----
Tire Pressure Monitoring   SystemCompleteBasicCompleteBasic
Immobilizer FunctionBasicBasicBasicBasic
Advanced TPMS Diagnostics for   Complete TPMS Health Check----
Activate All Known TPMS   Sensors----
Program AUTEL MX-Sensors----
Comprehensive OBD relearn   coverage----
On-screen Relearn Procedure----
DoIP----
CANFD√(optional adapter)√(optional adapter)
Battery Analysis----
Videoscope
ProcessorQuad-core 1.8GHzQuad-core 1.8GHzQuad-core 1.6GHzQuad-core 1.6GHz
Operating SystemAndroid 11Android 11Android 4.4.4Android 4.4.4
Memory4G + 64G4G + 64G1G + 64G1G + 64G
Display8" LCD8" LCD7" LCD7" LCD
Battery7700mAh7700mAh5000mAh5000mAh
Internet UpdatableWiFiWiFiWiFiWiFi
Multilingual Support
Historical Test Records
Save and Playback Data
Print Data via Windows PC
Vehicle communication methodWireless (bluetooth)WiredWireless (bluetooth)Wired


  • Description
  • · Extensive vehicle coverage for U.S., Asian, and European vehicle makes

    · Exceptional OE-Level system for all electronic systems

    · Excellent functions for reading codes, live data, ECU information and performing active test, adapation, and matching, etc.

    · Features DoIP and CAN FD protocols

    · Smart AutoVIN technology for identifying vehicles easily

    · Automatic system and software updates with real-time push notifications through the Internet

    · Instant remote control tech support anytime and anywhere

    · Advanced TPMS diagnostics with DTC description

    · TPMS status, one step for complete TPMS health check

    · Activate all known TPMS sensors

    · Program AUTEL MX-Sensor

    · Comprehensive OBD relearn coverage

    · On-screen relearn procedure

    · One-stop multitasking designed for ideal management of workshop operations to keep

    all data files, customer info, and vehicle records well organized

    · Supports Pre & Post Scan


  • Specifications
  • Operating   SystemAndroid   11
    ProcessorQuad core Processor(1.8GHz)
    Memory4GB RAM & 64GB ROM
    Display8-inch LCD capacitive touchscreen with 1280x800 resolution
    Rear Camera8 MP
    ConnectivityUSB Type-C
    USB 2.0
    Wi-Fi
    Bluetooth
    Mini SD card (supports up to 64GB)
    Audio Input/OutputInput: N/A
    Output: buzzer
    Power and Battery3.7 V/7700mAh lithium-polymer battery
    Charges via 5 VDC power supply
    Battery Charging Input5 V/3 A
    Operating Temp0 to 50°C (32 to 122°F)
    Storage Temp-10 to 60°C (14 to 140°F)
    ProtocolsISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing   Code, SAE-J1850 VPW, SAE-J1850PWM,   ISO11898(High-speed, Middle-speed, Low-speed    and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART   Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD


  • Video
  • Comparison

  • MaxiCheck MX900TSMaxiCheck MX900MaxiCheck MX808TSMaxiCheck MX808
    Read Codes
    Erase Codes
    Live Data
    ECU Information
    Active Test
    Service Functions√(40kinds)√(40kinds)√(36kinds)√(36kinds)
    Complete OBD Diagnositcs
    Pre & Post Scan----
    Tire Pressure Monitoring   SystemCompleteBasicCompleteBasic
    Immobilizer FunctionBasicBasicBasicBasic
    Advanced TPMS Diagnostics for   Complete TPMS Health Check----
    Activate All Known TPMS   Sensors----
    Program AUTEL MX-Sensors----
    Comprehensive OBD relearn   coverage----
    On-screen Relearn Procedure----
    DoIP----
    CANFD√(optional adapter)√(optional adapter)
    Battery Analysis----
    Videoscope
    ProcessorQuad-core 1.8GHzQuad-core 1.8GHzQuad-core 1.6GHzQuad-core 1.6GHz
    Operating SystemAndroid 11Android 11Android 4.4.4Android 4.4.4
    Memory4G + 64G4G + 64G1G + 64G1G + 64G
    Display8" LCD8" LCD7" LCD7" LCD
    Battery7700mAh7700mAh5000mAh5000mAh
    Internet UpdatableWiFiWiFiWiFiWiFi
    Multilingual Support
    Historical Test Records
    Save and Playback Data
    Print Data via Windows PC
    Vehicle communication methodWireless (bluetooth)WiredWireless (bluetooth)Wired
