MaxiSYS MS909

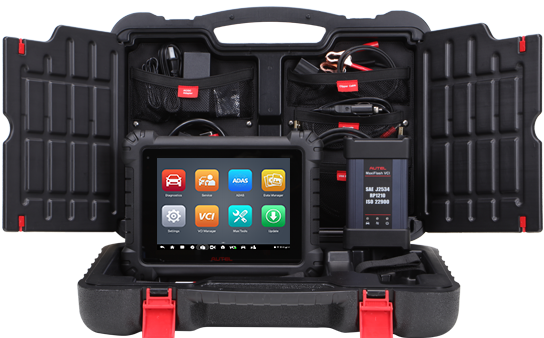

MaxiSYS MS909 Diagnostic Tablet with MaxiFlash VCI/J2534

The MaxiSYS MS909 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor,128GB memory and features an advanced VCI supporting latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The MS909 features topology module mapping capability for supported vehicles and its Intelligent Diagnostics feature that guides the technician from code to repair to test with detailed repair information and illustrations. The MS909 features a rechargeable Lithium battery providing 8 hours of continues use, and front and rear cameras.


  • image 0
  • image 0
  • image 0

• Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar


• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming


• Automatic system and software updates with real-time push message notifications via internet


• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error


• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize


• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Operating SystemAndroid 7.0 / Android 10.0
Processor

Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) / Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

Memory4GB RAM & 128GB On-board Memory
Display9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity

  • Dual Wi-Fi(802.11 a/b/g/n/ac 2x2 MIMO)

  • BT V5.0 + BR/EDR

  • GPS

  • USB 2.0 (2 USB TYPE-A ports and a Mini USB port)

  • HDMI 2.0

  • SD Card (Support up to 256GB)

Camera

  • Rear: 16 Megapixel, Autofocus with Flashlight

  • Front: 16 Megapixel

Sensors

Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output

  • Microphone

  • Dual Speakers

  • 3-Band 3.5 mm stereo/standard headset jac

Power and Battery

  • 15000mAH 3.8V lithium-polymer battery

  • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage12V/3A Adapter
Operating Temperature0 to 50°C (32 to 122°F)
Storage Temperature-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight1.66kg (3.66 lb.)
ProtocolsDoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

  • MaxiSys MS909 (660 Version)_User Manual_EN

    Download

  • Description

    • • Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar


    • Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming


    • Automatic system and software updates with real-time push message notifications via internet


    • Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error


    • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize


    • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

  • Specifications
    • Operating SystemAndroid 7.0 / Android 10.0
    Processor

    Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) / Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

    Memory4GB RAM & 128GB On-board Memory
    Display9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
    Connectivity

    • Dual Wi-Fi(802.11 a/b/g/n/ac 2x2 MIMO)

    • BT V5.0 + BR/EDR

    • GPS

    • USB 2.0 (2 USB TYPE-A ports and a Mini USB port)

    • HDMI 2.0

    • SD Card (Support up to 256GB)

    Camera

    • Rear: 16 Megapixel, Autofocus with Flashlight

    • Front: 16 Megapixel

    Sensors

    Gravity Accelerometer, Ambient Light Sensor (ALS)

    Audio Input/Output

    • Microphone

    • Dual Speakers

    • 3-Band 3.5 mm stereo/standard headset jac

    Power and Battery

    • 15000mAH 3.8V lithium-polymer battery

    • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C

    Input Voltage12V/3A Adapter
    Operating Temperature0 to 50°C (32 to 122°F)
    Storage Temperature-20 to 60°C (-4 to 140°F)
    Dimensions(W x H x D)304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
    Weight1.66kg (3.66 lb.)
    ProtocolsDoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
