MaxiPRO MP900-BT/MP900Z-BT

AUTOMOTIVE DIAGNOSIS SYSTEM

Featuring the powerful quad-core processor, and an 8.0-inch LCD capacitive touchscreen, based on the Android multitasking operating system, and combined with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the MaxiPRO MP900-BT/MP900Z-BT is your ideal auto diagnostics and service tool. It provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), and DPF (Diesel Particulate Filter).

  • image 1

· 8-inch LCD capacitive touchscreen with 1280 x 800 resolution display

· MaxiVCI V150 for wireless connection

· Read/clear codes for all available systems

· Display live data in text, graph & analog for easy data review

· Expansive 40-plus menu of service and maintenance tasks

· Features DoIP and CAN FD protocols

· AutoVIN technology can automatically identify the vehicle's make, model and year information in no time

· Support Pre & Post Scan function

· Reset service mileage and service intervals

· Relearn parking brake pad after replacement

· Forced regeneration and adjusting injectors

· Support battery registration and reset

· Reset Steering Angle Sensor (SAS)


Operating   SystemAndroid   11
ProcessorQuad core Processor(1.8GHz)
Memory4GB RAM & 64GB ROM
Display8-inch LCD capacitive touchscreen with 1280x800 resolution
Rear Camera8 MP
ConnectivityUSB Type-C
USB 2.0
Wi-Fi
Bluetooth
Mini SD card (supports up to 64GB)
Audio Input/OutputInput: N/A
Output: buzzer
Power and Battery3.7 V/7700mAh lithium-polymer battery
Charges via 5 VDC power supply
Battery Charging Input5 V/3 A
Operating Temp0 to 50°C (32 to 122°F)
Storage Temp-10 to 60°C (14 to 140°F)
ProtocolsISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing   Code, SAE-J1850 VPW, SAE-J1850PWM,   ISO11898(High-speed, Middle-speed, Low-speed    and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART   Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD



MaxiPRO MP900-BT/MP900Z-BTMaxiPRO MP900/MP900EMaxiPRO MP900-TS
Read Codes
Erase Codes
Live Data
ECU Information
Active Test
Service Functions√(40+kinds)√(40+kinds)√(40+kinds)
Complete OBD Diagnostics
Pre & Post Scan
ECU Coding
Guided Function
Tire Pressure Monitoring   SystemBasicBasicComplete
Immobilizer FunctionBasicBasicBasic
Advanced TPMS Diagnostics for   Complete TPMS Health Check----
Activate All Known TPMS   Sensors----
Program AUTEL MX-Sensors----
Comprehensive OBD relearn   coverage----
On-screen Relearn Procedure----
DoIP
CANFD
Battery Analysis--
Videoscope
ProcessorQuad-core 1.8GHzQuad-core 1.8GHzQuad-core 1.8GHz
Operating SystemAndroid 11Android 11Android 11
Memory4G + 64G4G + 64G4G + 64G
Display7" LCD7" LCD7" LCD
Battery7700mAh7700mAh7700mAh
Internet UpdatableWiFiWiFiWiFi
Multilingual Support
Historical Test Records
Save and Playback Data
Print Data via Windows PC
Vehicle communication methodWireless (bluetooth)WiredWireless (bluetooth)


  • MP900-BT&MP900Z-BT_Quick Guide

    Download
  • MaxiPRO MP900-BT & MP900-BT KIT & MP900Z-BT_User Manual_EN

    Download

  • Description
  • · 8-inch LCD capacitive touchscreen with 1280 x 800 resolution display

    · MaxiVCI V150 for wireless connection

    · Read/clear codes for all available systems

    · Display live data in text, graph & analog for easy data review

    · Expansive 40-plus menu of service and maintenance tasks

    · Features DoIP and CAN FD protocols

    · AutoVIN technology can automatically identify the vehicle's make, model and year information in no time

    · Support Pre & Post Scan function

    · Reset service mileage and service intervals

    · Relearn parking brake pad after replacement

    · Forced regeneration and adjusting injectors

    · Support battery registration and reset

    · Reset Steering Angle Sensor (SAS)


  • Specifications
  • Operating   SystemAndroid   11
    ProcessorQuad core Processor(1.8GHz)
    Memory4GB RAM & 64GB ROM
    Display8-inch LCD capacitive touchscreen with 1280x800 resolution
    Rear Camera8 MP
    ConnectivityUSB Type-C
    USB 2.0
    Wi-Fi
    Bluetooth
    Mini SD card (supports up to 64GB)
    Audio Input/OutputInput: N/A
    Output: buzzer
    Power and Battery3.7 V/7700mAh lithium-polymer battery
    Charges via 5 VDC power supply
    Battery Charging Input5 V/3 A
    Operating Temp0 to 50°C (32 to 122°F)
    Storage Temp-10 to 60°C (14 to 140°F)
    ProtocolsISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing   Code, SAE-J1850 VPW, SAE-J1850PWM,   ISO11898(High-speed, Middle-speed, Low-speed    and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART   Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD


  • Video
  • Comparison

  • MaxiPRO MP900-BT/MP900Z-BTMaxiPRO MP900/MP900EMaxiPRO MP900-TS
    Read Codes
    Erase Codes
    Live Data
    ECU Information
    Active Test
    Service Functions√(40+kinds)√(40+kinds)√(40+kinds)
    Complete OBD Diagnostics
    Pre & Post Scan
    ECU Coding
    Guided Function
    Tire Pressure Monitoring   SystemBasicBasicComplete
    Immobilizer FunctionBasicBasicBasic
    Advanced TPMS Diagnostics for   Complete TPMS Health Check----
    Activate All Known TPMS   Sensors----
    Program AUTEL MX-Sensors----
    Comprehensive OBD relearn   coverage----
    On-screen Relearn Procedure----
    DoIP
    CANFD
    Battery Analysis--
    Videoscope
    ProcessorQuad-core 1.8GHzQuad-core 1.8GHzQuad-core 1.8GHz
    Operating SystemAndroid 11Android 11Android 11
    Memory4G + 64G4G + 64G4G + 64G
    Display7" LCD7" LCD7" LCD
    Battery7700mAh7700mAh7700mAh
    Internet UpdatableWiFiWiFiWiFi
    Multilingual Support
    Historical Test Records
    Save and Playback Data
    Print Data via Windows PC
    Vehicle communication methodWireless (bluetooth)WiredWireless (bluetooth)


  • Downloads

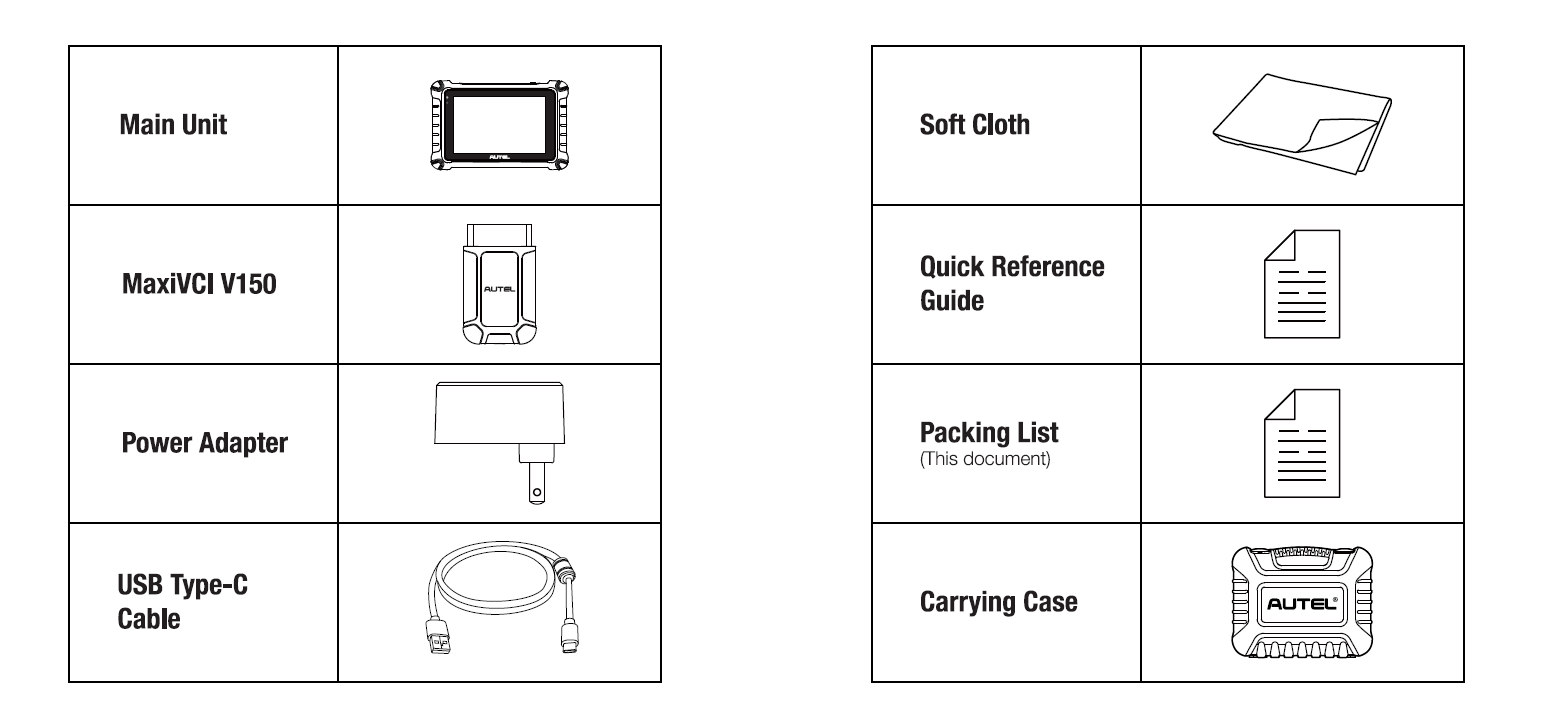

  • Accessories
