MaxiCOM Ultra Lite/Ultra Lite S

MaxiCOM Ultra Lite / Ultra Lite S is a multi-platform diagnostics solution comprised of a powerful 12.7-inch TFT-LCD touchscreen Android-based tablet, a VCI communication and diagnostics unit, and an on-tool and cloud-based repair instructions and expert advice.


  • image 1

• Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar


• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming


• Automatic system and software updates with real-time push message notifications via internet


• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error


• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize


• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes


Operating System

Android 7.0

Processor

Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)

Memory

4GB RAM & 256GB On-board Memory

Display

12.7 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen

Connectivity

WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)

BT v.2.1 + EDR

GPS

USB 2.0 (Two USB HOST Type A, one USB mini device)

HDMI 2.0

SD Card (Support up to 256GB)

Camera

Rear: 16 Megapixel, Autofocus with Flashlight

Front: 5 Megapixel

Sensors

Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio   Input/Output

Microphone

Dual Speakers

3-Band 3.5 mm stereo/standard headset jack

Power   and Battery

18000mAh   3.8V   lithium-polymer   battery

Charging via 12V   AC/Dcpower supply with the temperature between 0°C and 45°C

Input   Voltage

12V/3A Adapter

Operating   Temp.

0 to 50°C (32 to 122°F)

Storage   Temperature

-20 to 60°C (-4 to 140°F)

Dimensions   (WxHxD)

366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")

Weight

2.18kg (4.81 lb.)

Protocols

CANFD, DoIP,   PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can   (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141,   ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H),   SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with   Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM   (Ford SCP), SAE-J1850 VPW (GM Class2)


  • MaxiCOM Ultra Lite (12.9-inch)_User Manual_EN V1.6

    Download
  • MaxiCOM Ultra Lite S (12.9-inch)_User Manual_EN V1.6

    Download

  • Description
  • • Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar


    • Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming


    • Automatic system and software updates with real-time push message notifications via internet


    • Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error


    • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize


    • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes


  • Specifications
  • Operating System

    Android 7.0

    Processor

    Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)

    Memory

    4GB RAM & 256GB On-board Memory

    Display

    12.7 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen

    Connectivity

    WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)

    BT v.2.1 + EDR

    GPS

    USB 2.0 (Two USB HOST Type A, one USB mini device)

    HDMI 2.0

    SD Card (Support up to 256GB)

    Camera

    Rear: 16 Megapixel, Autofocus with Flashlight

    Front: 5 Megapixel

    Sensors

    Gravity Accelerometer, Ambient Light Sensor (ALS)

    Audio   Input/Output

    Microphone

    Dual Speakers

    3-Band 3.5 mm stereo/standard headset jack

    Power   and Battery

    18000mAh   3.8V   lithium-polymer   battery

    Charging via 12V   AC/Dcpower supply with the temperature between 0°C and 45°C

    Input   Voltage

    12V/3A Adapter

    Operating   Temp.

    0 to 50°C (32 to 122°F)

    Storage   Temperature

    -20 to 60°C (-4 to 140°F)

    Dimensions   (WxHxD)

    366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")

    Weight

    2.18kg (4.81 lb.)

    Protocols

    CANFD, DoIP,   PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can   (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141,   ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H),   SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with   Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM   (Ford SCP), SAE-J1850 VPW (GM Class2)


  • Video
  • Comparison
  • Downloads

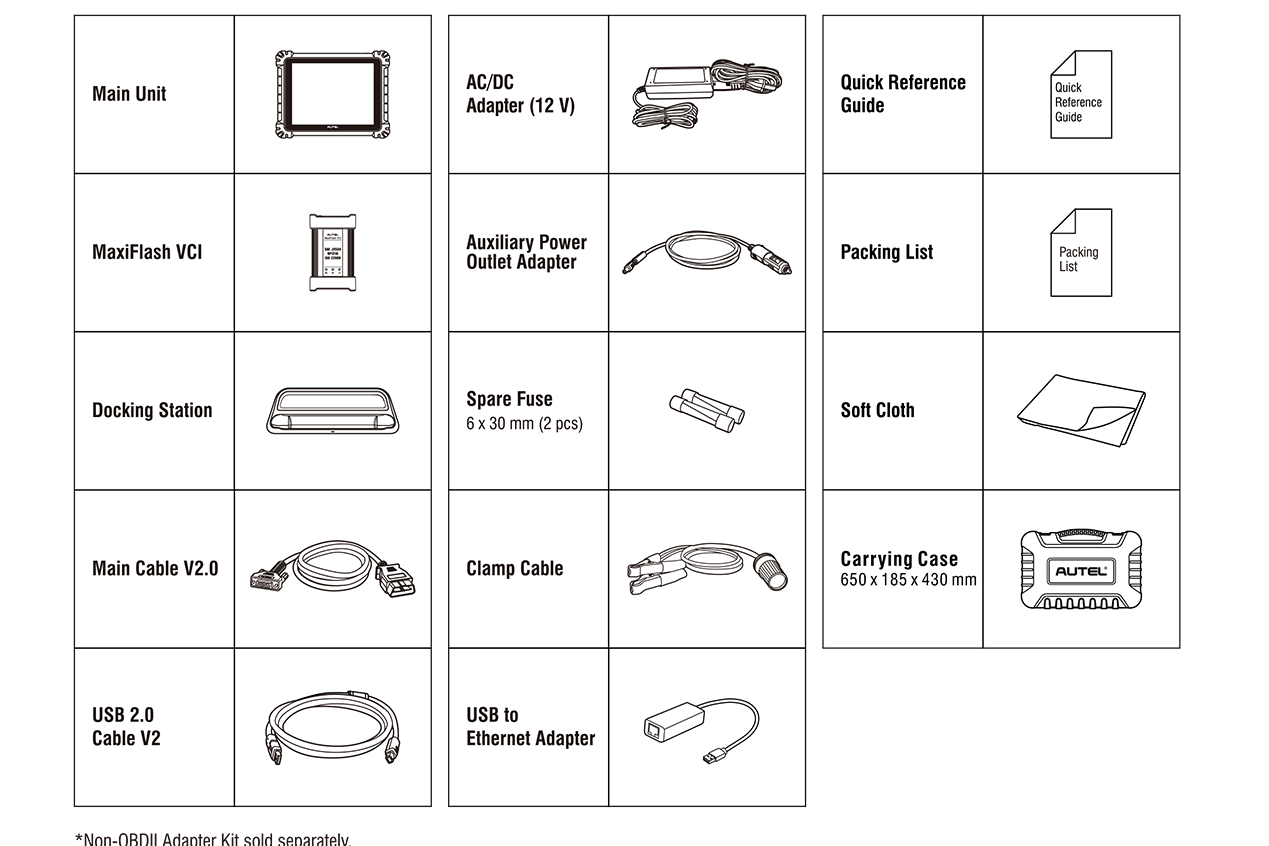

  • Accessories
